Overcoming Fine Material Measurement Challenges

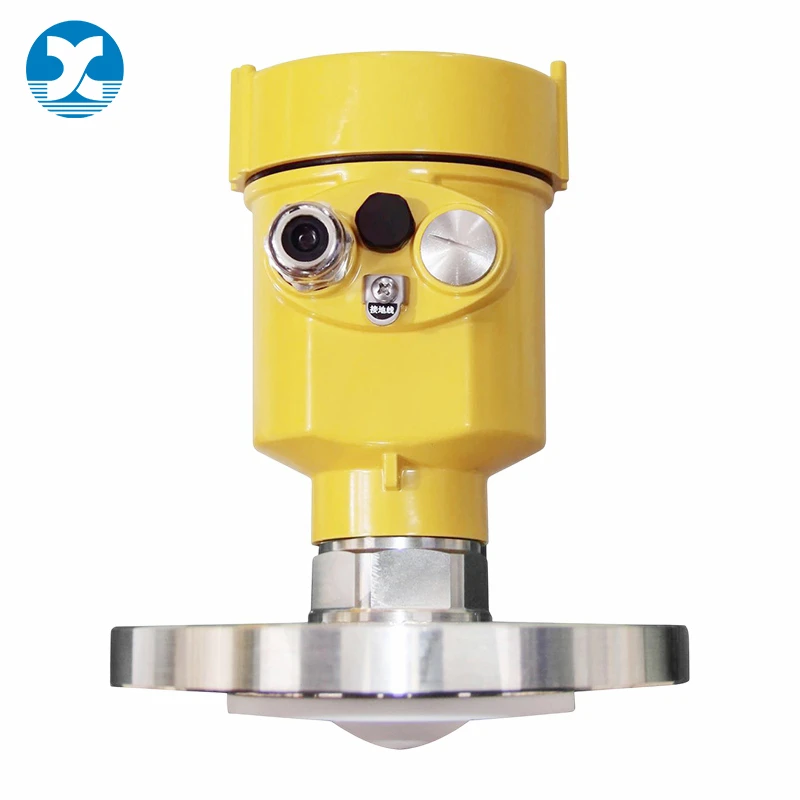

Accurate inventory tracking in powder and granule storage requires overcoming unique physical challenges that standard level sensors simply cannot handle. Fine particles tend to suspend in air, creating dense dust clouds that scatter low-frequency signals. Granular materials frequently bridge, rat-hole, or segregate, leading to false level readings and costly production downtime. The XYRD9093 Radar Level Sensor is specifically engineered to address these fine-bulk-material pain points.
Operating on an advanced 76–81 GHz frequency, this non-contact transmitter generates a highly focused beam that easily penetrates suspended dust to lock onto the true material surface. The 78mm PTFE integrated filling lens antenna features a specialized anti-adhesion surface, preventing sticky powders from building up and skewing measurements. Paired with a universal flange equipped with a purge interface, the XYRD9093 ensures continuous, reliable level data for everything from food-grade flour to abrasive mineral granules, maintaining accuracy up to a distance of 120 meters.
Specialized Solutions for Powder & Granule Environments
Standard solid-level radars often fail in powder applications due to signal attenuation and antenna coating. The XYRD9093 is designed with a powder-first philosophy:
- Dust Cloud Penetration: The 76–81 GHz high-frequency radar provides superior signal energy, allowing the beam to pass through heavy particulate suspension without losing echo strength.
- Anti-Adhesion Lens Technology: The 78mm PTFE lens offers a naturally non-stick surface. Combined with the integrated purge interface, operators can introduce air or nitrogen to keep the antenna clear of fine powder buildup without dismantling the sensor.
- Handling Irregular Surfaces: Powders often rest at uneven angles or form cones. The narrow beam angle accurately targets the center of the silo, avoiding false echoes from sidewall buildup or internal support structures.
- Dust Explosion Safety: Handling fine powders and granules carries inherent explosion risks. The XYRD9093 carries Ex ia IIC T6 Ga intrinsic safety certification, ensuring safe operation in highly combustible dust environments.
- Flexible Configuration: Whether managing a local food-grade bin or a remote chemical silo, users can configure the device via the integrated LCD keypad, Bluetooth programmer, or 5G remote network commissioning.
Core Technical Specifications
|
Parameter |
Specification |
|
Model |
XYRD9093 |
|
Frequency |
76–81 GHz |
|
Antenna |
78mm PTFE integrated filling lens antenna |
|
Measuring Range |
0 ~ 120 m |
|
Accuracy |
±5 mm |
|
Process Connection |
Universal flange with purge interface |
|
Protection Rating |
IP67 |
|
Explosion Proof |
Ex ia IIC T6 Ga |
|
Signal Output |
Standard 4-20mA/HART two-wire; Optional: four-wire, RS-485 Modbus |
|
Power Supply |
Two-wire/four-wire, DC24V/AC220V |
|
Display & Commissioning |
LCD display, keypad; optional Bluetooth programmer, 5G remote network commissioning |
Targeted Industry Applications
The XYRD9093 is optimized for facilities where fine material flowability and dust control are critical:
- Chemical Powder Silos: Safely monitors reactive or combustible chemical powders with Ex ia IIC T6 Ga intrinsic safety, while the purgable flange prevents hazardous dust accumulation on the sensor face.
- Food & Feed Powder Bins: Delivers hygienic, non-contact measurement for flour, sugar, and animal feed. The PTFE lens prevents cross-contamination and ensures compliance with strict food safety standards.
- Building Material Powder Storage: Provides reliable inventory data for cement, fly ash, and lime. The high-frequency beam easily penetrates the dense, abrasive dust generated during pneumatic conveying and filling.
- Mineral & Aggregate Granule Bins: Accurately tracks granular ores and aggregates where material segregation and uneven resting angles typically cause false readings in traditional sensors.
- Pharmaceutical Powder Intermediate Tanks: Ensures precise batch tracking for active pharmaceutical ingredients (APIs) and excipients. The non-contact design eliminates the risk of product contamination in sterile environments.
- Plastic & Resin Granule Silos: Monitors plastic pellets and resin granules without risking particle attrition. The focused beam ignores internal baffles and accurately measures the true granule level.
Frequently Asked Questions
Q1: Why is a 76-81 GHz frequency specifically recommended for powders instead of lower frequencies?
Lower frequency radars emit wider beams that scatter easily in dense dust clouds, leading to signal loss. The 76-81 GHz frequency provides a highly focused beam with greater energy, allowing it to penetrate suspended fine particles and return a stable echo from the actual powder surface.
Q2: How does the XYRD9093 prevent measurement errors caused by powder sticking to the antenna?
The sensor features a 78mm PTFE lens, which has natural non-stick properties. Additionally, the universal flange includes a purge interface, allowing plant operators to periodically blow air or nitrogen across the lens to dislodge any accumulated fine dust without removing the sensor.
Q3: Can this radar handle the uneven surfaces created by powder bridging or conical piling?
Yes. The highly focused narrow beam targets the center of the silo rather than the walls. This allows the XYRD9093 to accurately measure the true level of the material cone or bridge, providing reliable inventory data even when the powder surface is irregular.
Q4: Is it possible to calibrate or troubleshoot the sensor without climbing the silo?
Absolutely. The XYRD9093 supports multiple remote and local commissioning methods. Operators can use the integrated LCD keypad, connect a Bluetooth programmer from the ground, or utilize the optional 5G remote network commissioning to adjust settings and view diagnostics safely.
Q5: My silo is taller than 120 meters or has a unique geometry. Can this sensor still be used?
The XYRD9093 is rated for up to 120 meters. If your application exceeds this range or requires a specialized antenna for extreme dust or adhesion, our engineering team can evaluate your specific silo structure and recommend an alternative model tailored to your exact requirements.
Q6: Is this sensor safe to install in areas with combustible powder dust?
Yes. The XYRD9093 is certified Ex ia IIC T6 Ga, making it intrinsically safe for use in hazardous environments where fine, combustible powders or granules are present, ensuring compliance with strict dust explosion safety regulations.
Request a Customized Powder Measurement Solution
Reliable level measurement in powder and granule storage demands specialized technology. To ensure the XYRD9093 is the perfect fit for your application, please reach out to our engineering team with your specific requirements. When requesting a quote, include your material type, silo dimensions, installation environment, and preferred power/communication outputs. We will provide a tailored technical proposal, confirm the optimal antenna and purge configuration, and deliver a competitive quotation designed for your fine bulk material handling needs.
