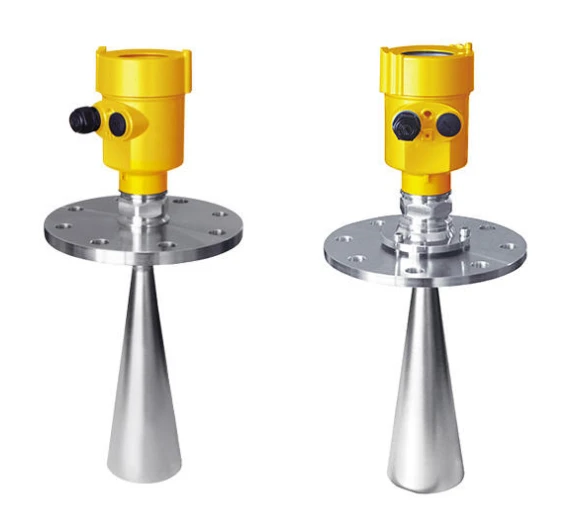

Radar Level Sensor With HART Protocol | 4-20mA HART Industrial Radar Transmitter

The radar level sensor with HART protocol is a universal non-contact level measuring device developed for standard industrial process control systems. Adopting advanced 76–81GHz FMCW radar technology, this high-frequency level transmitter delivers continuous, highly stable level detection for liquids, granular materials and bulk solids across diverse storage tanks and silos. Equipped with standard 4-20mA analog output superimposed with HART digital communication, the unit realizes dual signal transmission, supporting both real-time level data feedback and remote device configuration.

Different from conventional radar sensors with only analog output, this HART-enabled radar transmitter allows engineers to access device parameters, adjust measuring settings, diagnose faults and view device status without opening equipment covers. It features strong system compatibility and simple on-site integration, making it an ideal upgrade solution for traditional industrial level monitoring systems.

HART (Highway Addressable Remote Transducer) is the most widely used industrial universal communication protocol for process instrumentation. It enables digital data interaction based on traditional 4-20mA analog loops, achieving seamless compatibility with old and new control systems.

Dual Signal Compatibility: Retains 4-20mA analog level signal while adding HART digital communication, supporting real-time monitoring and precise system control.

Remote Parameter Configuration: Supports remote parameter modification, range calibration and linearity adjustment via HART handheld communicators or upper computer software.

Real-Time Fault Diagnosis: Automatically feeds back device operating status, abnormal signals and fault codes, greatly improving equipment maintenance efficiency.

Wide System Adaptability: Fully compatible with mainstream PLC, DCS and industrial control systems, suitable for most chemical, environmental, energy and building material industrial projects.

High-Frequency Focused Radar Detection

Utilizing 76–81GHz high-frequency narrow-beam radar technology, the sensor features concentrated signal energy and strong anti-interference capability. It effectively avoids interference from tank walls, internal obstacles, steam and light dust, ensuring stable and accurate long-term measurement.

Non-Contact Maintenance-Free Design

The non-contact measuring structure requires no direct contact with measured media, avoiding corrosion, abrasion and material adhesion. It adapts to corrosive, viscous and easily crystallized working conditions with extremely low daily maintenance requirements.

Flexible Multi-Mode Debugging

The transmitter supports local LCD key calibration, wireless Bluetooth configuration and optional remote network debugging. Cooperated with HART protocol communication, it realizes full-scene convenient parameter adjustment and equipment management.

High Protection & Explosion-Proof Performance

With IP65 integral sealing design and intrinsic explosion-proof certification, the sensor adapts to flammable and explosive industrial environments, meeting safety monitoring requirements for hazardous process sites.

The following technical data shows standard configuration parameters of HART protocol radar level transmitter for general industrial level measurement. All indicators are tested under standard laboratory conditions for user model selection and project reference.

This HART-compatible radar level sensor is widely applicable for level monitoring of liquids, powders and granular materials in standard industrial process systems:

Petrochemical and chemical storage tank level monitoring

Environmental water treatment and sewage tank level measurement

Building material, cement and industrial powder silo monitoring

Food, pharmaceutical and new material production vessels

Energy industry process container continuous level tracking

Compared with ordinary radar level sensors, the HART protocol radar transmitter features stronger system compatibility and smarter operability. It supports real-time data uploading and remote equipment diagnosis, greatly reducing on-site inspection and maintenance costs. The high-frequency radar beam ensures stable measurement in complex working conditions such as steam, dust and medium fluctuation, providing reliable data support for industrial automatic production control.

Q1: What is the function of HART protocol in radar level sensors?

HART protocol realizes digital communication on the basis of 4-20mA analog signal, supporting remote parameter adjustment, real-time data reading and equipment fault diagnosis, making instrument debugging and maintenance more efficient.

Q2: Is HART radar level sensor compatible with old DCS systems?

Yes. It retains the traditional 4-20mA analog output, which is fully compatible with old control systems, while reserving digital upgrade space for later system optimization.

Q3: Does HART communication affect normal level signal output?

No interference occurs. HART digital signal is superimposed on the analog loop without affecting 4-20mA level transmission, ensuring stable and continuous system operation.

We provide standard and customized HART radar level transmitter solutions according to different working conditions, medium characteristics and system integration requirements. If you have special demands on measuring range, installation mode or communication configuration, please contact our technical team for professional matching and quotation services.
