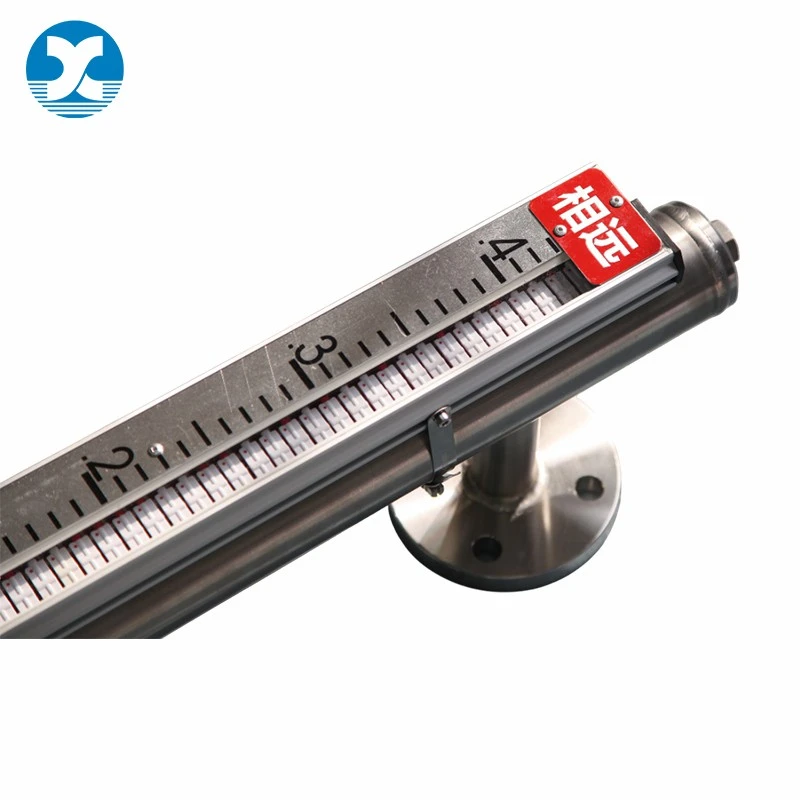

High Temperature Magnetic Level Gauge | Heat-Resistant Stainless Steel Level Indicator

Built exclusively for severe thermal industrial operating environments, our High Temperature Magnetic Level Gauge is a heavy-duty stainless steel level monitoring solution, professionally optimized for sustained high-temperature operation, frequent thermal cycling and unstable heat fluctuation scenarios. Conventional general-purpose level instruments commonly suffer from flap aging, seal failure, structural distortion and inaccurate measurement under long-term heat radiation. In contrast, this heat-resistant model adopts upgraded high-temperature sealing components and temperature-adaptive magnetic display systems, delivering ultra-stable, repeatable level detection for heated storage tanks, thermal reaction vessels and high-temperature process piping systems.

This thermally optimized level indicator boasts an ultra-wide temperature adaptation range, covering cryogenic freezing conditions all the way to extreme 400°C high-temperature industrial scenarios. It is widely applied in thermal power generation, petrochemical thermal processing, high-temperature chemical reaction workshops, heating furnace auxiliary systems and industrial heat storage tank monitoring. Equipped with diversified stainless steel wetted material options and temperature-matched internal core parts, it delivers reliable medium corrosion resistance while maintaining intact structural stability under long-duration heat exposure and thermal aging.

The product features versatile on-site installation compatibility and expandable multi-signal functions. It can be paired with high-temperature resistant transmitters and contactless magnetic switch accessories to realize dual monitoring modes: on-site intuitive visual reading and remote real-time data transmission. It fully meets the automatic control and data acquisition requirements of continuous high-temperature production lines. Thanks to its superior thermal stability and maintenance-free design, it has become the preferred measuring instrument for all types of long-cycle thermal process working conditions.

• Full Thermal Range Adaptability & Anti-Aging Stability Engineered to withstand extreme thermal cycling ranging from -40°C to 400°C. All core display units and sealing components are strictly screened and graded for thermal resistance, effectively eliminating common equipment faults including flap discoloration, operational jamming and seal aging caused by long-term continuous heat radiation.
• Temperature-matched Dual Magnetic Display System Provides targeted flap configuration for different thermal environments. PA nylon composite flaps adapt to conventional low and medium temperature working conditions below 150°C, while all-metal high-temperature magnetic flaps are specially used for 400°C ultra-high temperature scenes, ensuring sensitive flipping response and clear reading without failure under persistent heat load.
• High-temperature Resistant Sealing & Anti-leakage Structure Optimized thermal sealing design resists high-temperature medium softening and decomposition. The overall welded stainless steel structure eliminates structural gaps, preventing medium leakage and steam penetration under high-temperature thermal expansion, greatly improving long-term operational reliability.
• Thermal Distortion Resistant Stainless Steel Structure Fabricated with premium 304SS and 316L thermally stabilized stainless steel for chambers and flanges, featuring consistent and reliable thermal expansion coefficients. Customized wall thickness design reinforces overall structural rigidity, preventing bending, deformation and structural fatigue under prolonged high-temperature heat soaking and thermal cycling.
• Thermally Optimized Floating Body Structure The dedicated stainless steel float is structurally upgraded to adapt to complex high-temperature fluid environments. It can actively counteract buoyancy changes caused by high-temperature medium viscosity variation and thermal convection turbulence, completely avoiding floating stagnation, lag response and inaccurate level feedback in thermal process systems.
• Strong Adaptability for Thermal Process Media Capable of stable measurement for various high-temperature process fluids with density ≥0.4 g/cm³ and low viscosity ≤10⁻⁴ m²/s. It perfectly adapts to common thermal industrial media such as high-temperature heat transfer oil, hot process water and heated organic solvents, fully matching the operating characteristics of industrial heating systems.

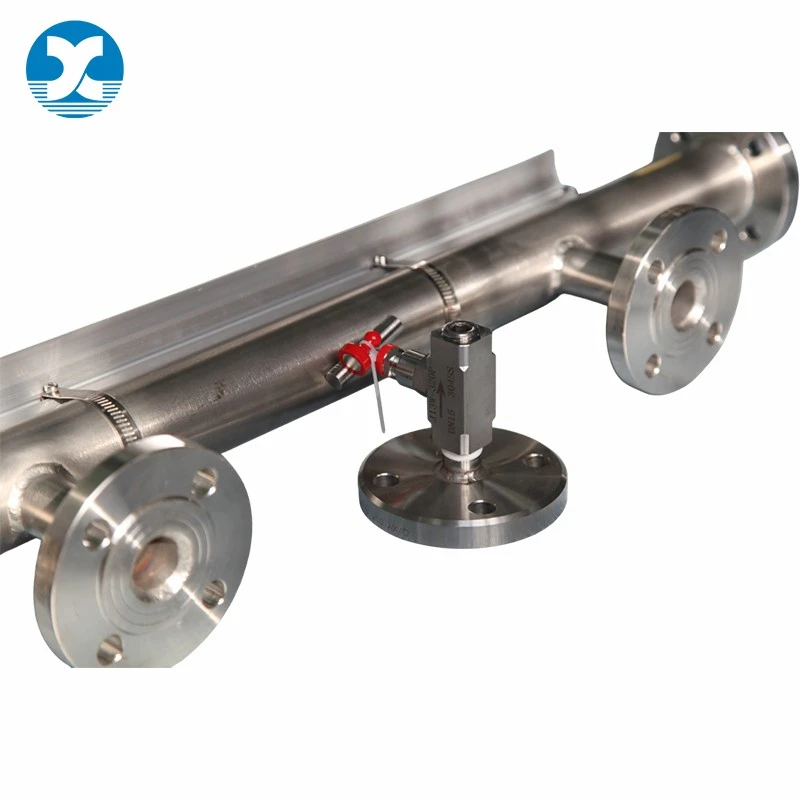

• Flexible Installation & On-site Adaptability Supports flange, welding and threaded diversified installation methods to adapt to various high-temperature vessel nozzle standards. Reserved drain port and customizable vent structure facilitate daily exhaust and sediment cleaning in high-temperature operating environments.
• Thermal-Stable Signal Output Expansion Matched with professionally temperature-calibrated transmitters and passive magnetic switch accessories. All supporting electrical components maintain zero-drift stable signal output under long-term high-temperature exposure, realizing remote level data transmission, upper/lower limit alarm and automatic process interlock control for thermal production lines.

This high-temperature dedicated magnetic level gauge adopts thermal-oriented structural optimization and temperature-adaptive component matching solutions. All dimensional specifications, material grades and performance parameters are professionally customized targeting high-temperature thermal process working conditions, ensuring long-term stable and reliable operation in high-heat industrial environments. The detailed technical parameters are listed below:

This heat-resistant magnetic level gauge is purpose-built for industrial heating systems, thermal circulation pipelines and high-temperature reaction process equipment. It solves the core pain points of ordinary level gauges, such as measurement instability, component aging and frequent failure under long-term high-temperature heat radiation and alternating thermal fluctuations, and is widely applicable to multiple high-heat industrial fields:

• Thermal Power & Heating Systems Suitable for boiler auxiliary water tanks, high-temperature thermal circulation tanks, steam buffer vessels and heat exchange station containers, adapting to long-term high-temperature and steam-rich environments.
• Petrochemical Thermal Processing Ideal for heat conduction oil storage tanks, high-temperature reaction kettles, thermal cracking auxiliary tanks and constant-temperature heating process vessels, providing stable level monitoring under continuous heat radiation.
• High-temperature Chemical Industry Applicable for heated solvent tanks, constant-temperature reaction containers and thermal insulation storage tanks, solving the problem of easy aging and failure of ordinary instruments in high-temperature chemical environments.
• Metallurgy & High-temperature Manufacturing Used for high-temperature process water tanks and thermal medium buffer tanks in metallurgical heating systems, maintaining accurate measurement under frequent temperature rise and fall cycles.
• General Industrial Thermal Storage Facilities Covers all kinds of industrial heating tanks, constant-temperature storage vessels and thermal circulating liquid containers that require long-term stable level indication and remote monitoring.

Q1: What unique advantages does this high-temperature dedicated level gauge have over ordinary stainless steel magnetic level gauges?

A: This model is fully optimized for thermal working conditions in structure, accessories and materials. It adopts temperature-grated magnetic flaps, professional high-temperature anti-leakage sealing structure and thermally stabilized stainless steel materials, which can effectively resist high-temperature aging, thermal distortion and steam corrosion. It maintains stable long-term operation in continuous high-heat environments where ordinary standard gauges cannot work normally.

Q2: How to choose the correct magnetic flap type for different temperature zones?

A: We provide two professional grades. Nylon-aluminum composite flaps are suitable for medium and low temperature scenarios below 150°C with cost-effective performance. Full-metal high-temperature flaps are mandatory for working conditions above 150°C up to 400°C to avoid thermal aging and sticking.

Q3: Will high-temperature fluid thermal convection affect float accuracy?

A: No. The high-temperature optimized float structure is specially designed for thermal fluid fluctuation. It can automatically adapt to tiny viscosity changes and thermal convection disturbance of high-temperature media, maintaining stable buoyancy balance and precise level tracking.

Q4: Can the transmitter and switch accessories work stably under 400°C long-term operation?

A: Yes. All supporting electrical accessories are high-temperature calibrated versions. They adopt anti-high-temperature aging components to ensure stable signal output and no drift under persistent thermal load.

Q5: Does high-temperature operation require special sealing configuration?

A: Our integrated full-welded structure matches high-temperature adaptive sealing design, which can effectively resist thermal expansion and high-temperature medium erosion without frequent replacement of sealing parts, greatly reducing maintenance frequency.

Q6: Can this gauge adapt to alternating hot and cold temperature cycles?

A: Absolutely. The overall stainless steel structure has stable thermal expansion coefficient, which can withstand repeated temperature rise and fall impact, suitable for batch production and intermittent heating process conditions.

Q7: Is customized high-temperature structural modification available for special thermal working conditions?

A: Yes. We support personalized customization of high-temperature resistant materials, special sealing configurations, ultra-high measuring heights and special installation sizes according to on-site thermal system parameters.

All high-temperature industrial working conditions require targeted thermal-adaptive configuration. Unsuitable component matching will easily cause display failure, signal drift and accelerated part aging under long-term heat load. Our professional technical team can formulate exclusive High Temperature Magnetic Level Gauge solutions according to your actual on-site temperature range, medium characteristics, measuring height and installation standards. We support thermal structure optimization, high-temperature accessory customization and large-batch project supply for all thermal process equipment. Submit your detailed process parameters now to get a customized configuration plan and competitive quotation.
