Sanitary/Hygienic Magnetic Level Gauge | Sanitary Side Mount Float Level Indicator

Traditional industrial magnetic level gauges prioritize pressure resistance only, lacking optimized structural and material configurations for clean, hygienic production environments, while professional pharmaceutical/food-grade level meters focus solely on ultra-high purity polishing and sterile disinfection standards with higher procurement costs. Our Sanitary/Hygienic Magnetic Level Gauge fills this market gap: it balances universal industrial pressure resistance and basic hygienic medium compatibility, applicable to most non-special sterile pressure vessels, storage tanks and mixing tanks in multi-industry production lines.

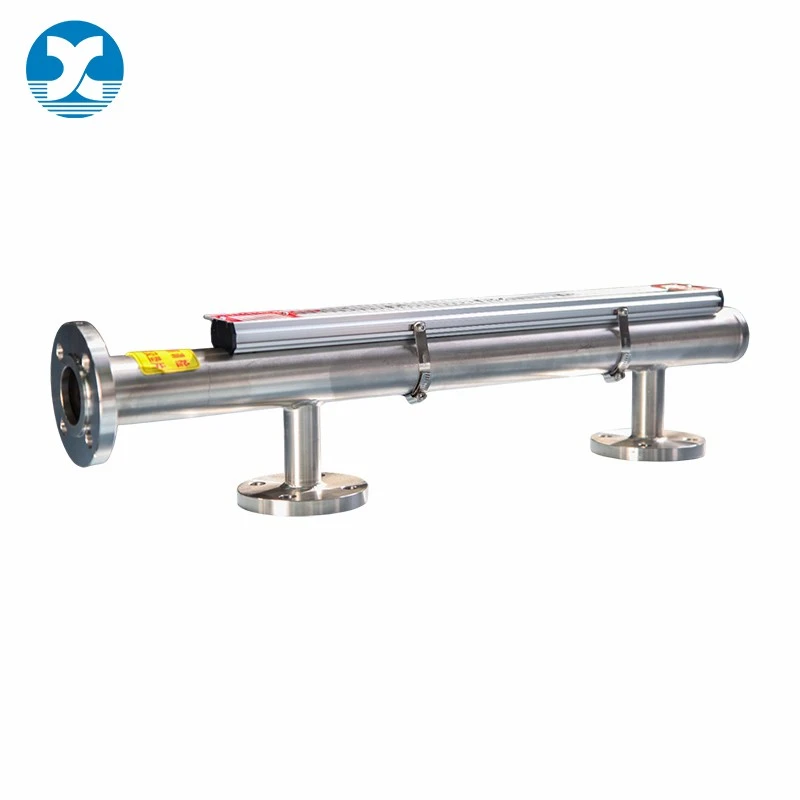

This side-mounted hygienic float level gauge delivers straightforward installation and consistent long-term operational stability. Multiple premium wetted alloy materials are optional to withstand various corrosive process fluids under vacuum to high-pressure working conditions. Different from single-function basic level gauges, it reserves complete expansion interfaces for multiple transmitters and passive magnetic switches. Operators can realize real-time remote liquid level data collection, over-limit alarm and automatic tank control without overhauling the original tank equipment.

It covers an ultra-wide working condition spectrum from vacuum up to 16MPa (Class900), with maximum design pressure reaching 32MPa under low-temperature working limits. The measuring range supports single-section up to 5500mm, and standard tubular raw materials can reach 6000mm for convenient direct delivery, with super-long measuring lengths available via customized splicing. Two types of magnetic indicator flaps are matched for different temperature working scenarios, adapting to low and high temperature hygienic process media from -40℃ to 400℃. Compared with ultra-specialized pharmaceutical food hygienic level gauges, this model has more flexible material collocation and wider cross-industry applicability, providing cost-effective hygienic liquid level monitoring solutions for general clean industrial production.

• Balanced Hygienic & Universal Industrial Performance Dual positioning for general clean production and heavy-duty industrial working conditions, compatible with most non-sterile hygienic media, avoids the excessive high cost of fully sterile pharmaceutical dedicated level instruments while meeting basic cleanliness and anti-contamination requirements for process fluid monitoring.
• Full Series Corrosion-Resistant Wetted Material Matching Rich material options including 304SS, 316L, Titanium, Hastelloy C276, Inconel 625 and 310S for chamber, flange and float components, coping with weakly corrosive, neutral and trace corrosive hygienic media in diverse industrial production lines.

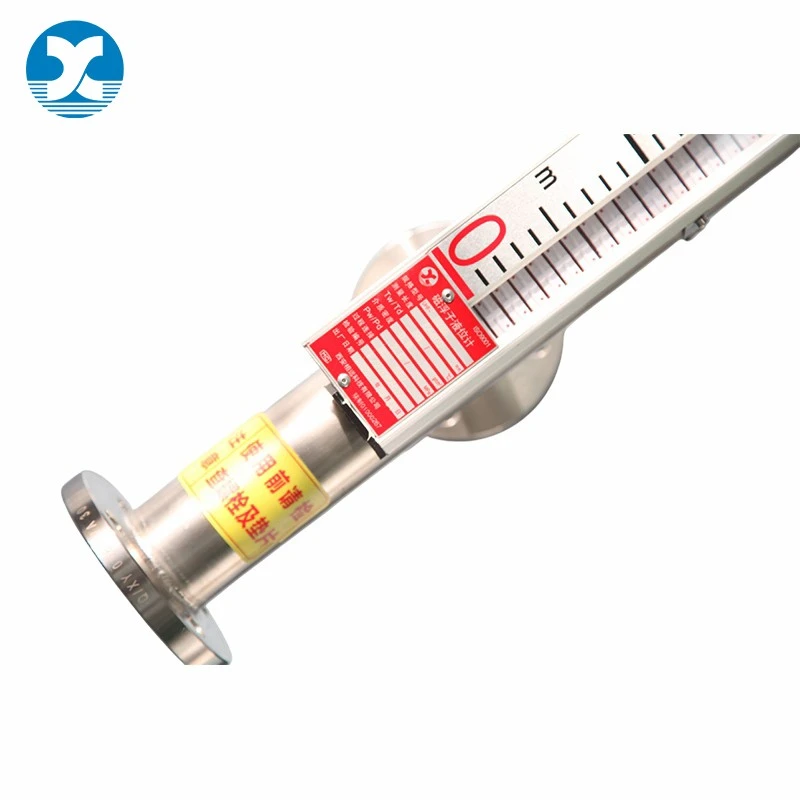

• Dual Temperature Adaptable Magnetic Flap Design Two indicator configurations for differentiated temperature demands: nylon aluminum profile flaps endure up to 150℃ for medium-low temperature clean processes; all-metal magnetic flaps support extreme temperature up to 400℃ for high-temperature hygienic fluid monitoring.
• Wide Pressure & Temperature Working Envelope Operates stably under full vacuum to 16MPa (Class 900), with a peak design pressure of 32MPa at 100℃; applicable medium temperature spans -40℃ to 400℃, covering low-temperature refrigeration storage and high-temperature heating clean processes.
• Wide Density & Viscosity Medium Compatibility Supports measurement of media density above 0.4g/cm³, adapts to process fluid viscosity ≤10⁻⁴ m²/s, prevents float jamming and display lag caused by viscous hygienic medium adhesion.
• Flexible Measuring Length & Convenient Delivery Single-section measuring range from 200mm to 5500mm; standard seamless tubes supplied at 6000mm without secondary cutting, ultra-long measuring heights can be customized with multi-section splicing.
• Diversified Connection & Auxiliary Structure Design Customizable flanged, welded or threaded process connections to match various tank nozzles; standard 1/2" internal thread drain valve for regular medium cleaning, no pre-installed vent port with custom vent fittings available on request.
• Multi-Type Remote Signal Expansion Compatibility Reserved installation space for magnetic control transmitters, differential pressure liquid level transmitters, magnetostrictive transmitters and inductive level sensors; passive magnetic switches support on-site high/low liquid level limit alarm for automated production control systems.

This hygienic magnetic level gauge integrates general industrial pressure resistance and basic sanitary process requirements, with diversified material collocation and full-condition parameter coverage. It serves as a cost-efficient liquid level measuring instrument for cross-industry clean storage and production tanks, detailed parameters as shown below:

This sanitary magnetic level gauge targets general clean industrial production scenarios that require basic hygienic standards without strict sterile polishing requirements, covering multiple mainstream industrial sectors:

• Petrochemical General Clean Storage Tanks Used for neutral and low-corrosion clean oil, solvent and auxiliary liquid storage tanks, stable liquid level monitoring under medium-high pressure and wide temperature ranges, avoiding medium cross-contamination.
• Metallurgy & Power Plant Clean Circulation Systems Applied to pure cooling water, boiler auxiliary clean medium tanks and circulating fluid storage vessels, reliable long-term operation under continuous high-temperature working conditions.
• Municipal & Industrial Water Treatment Facilities Matching clean water, purified water and low-pollution wastewater intermediate storage tanks, with corrosion-resistant alloy options to adapt to slightly acidic or alkaline water-based media.
• General Chemical Blending & Mixing Vessels Suitable for conventional chemical mixing tanks with basic cleanliness requirements, supporting remote liquid level linkage control for automatic batching production lines.
• Light Industry Clean Raw Material Storage Equipment For daily chemical, cosmetic intermediate raw material tanks with non-sterile hygienic standards, offering cost-effective level measurement compared with ultra-high-purity food/pharma dedicated level meters.

Q1: What is the difference between this Sanitary/Hygienic Magnetic Level Gauge and Pharmaceutical/Food dedicated hygienic level gauge?

A: Both adopt stainless steel hygienic design, but with differentiated positioning. This sanitary model focuses on cross-industry general clean production, with flexible multi-alloy material options, wider pressure/temperature coverage and lower procurement cost, applicable to non-strict sterile tanks. Pharmaceutical/Food dedicated versions feature ultra-fine internal surface polishing, full sterile disinfection compatibility and sanitary quick-fit connections, exclusively for aseptic food and pharmaceutical production lines with stricter purity standards.

Q2: How to select magnetic flap types for different process temperatures?

A: For medium-low temperature media below 150℃, aluminum nylon coated flaps are cost-effective; for high-temperature process fluid over 150℃ up to 400℃, all-metal magnetic flaps must be selected to prevent thermal deformation and failure of plastic components.

Q3: What maximum measuring length can this hygienic level gauge support?

A: Single-section complete tube can reach 5500mm, standard raw tubular material length is 6000mm for direct cutting delivery. For measuring heights exceeding 5500mm, multi-section spliced structures can be customized according to on-site tank conditions.

Q4: Can multiple signal transmitters be installed on one level gauge simultaneously?

A: Yes. The chamber reserves unified external installation interfaces, supporting simultaneous matching of magnetostrictive transmitters and passive magnetic switches to realize remote data transmission and local high-low limit dual monitoring.

Q5: Which wetted material should be chosen for corrosive hygienic media?

A: Ordinary clean water and neutral oil select cost-effective 304/316L stainless steel; media containing chloride, acid or trace corrosive components can choose Titanium, Hastelloy C276 or Inconel 625 alloy to extend service life.

Q6: Does this level gauge support high-pressure working environments?

A: The standard working pressure reaches 16MPa (Class900), and under the limited temperature of 100℃, the maximum design pressure can reach 32MPa, meeting most medium and high-pressure clean tank working demands in industrial production.

General hygienic liquid level monitoring demands vary greatly across different industrial sectors. Our Sanitary/Hygienic Magnetic Level Gauge balances broad working condition adaptability and basic clean medium protection, delivering a budget-friendly alternative to fully sterile food and pharmaceutical dedicated level instruments. Our technical team can customize matching schemes for your tank size, medium temperature, pressure, corrosive composition and signal control demands, including targeted alloy material selection, connection form adjustment and supporting transmitter configuration. Send your detailed on-site working parameters to us now, and we will provide you with a tailored hygienic liquid level measurement solution and competitive bulk quotation.
