What Temperature and Pressure Can Industrial Radar Level Transmitters Withstand? A Practical Sourcing Guide

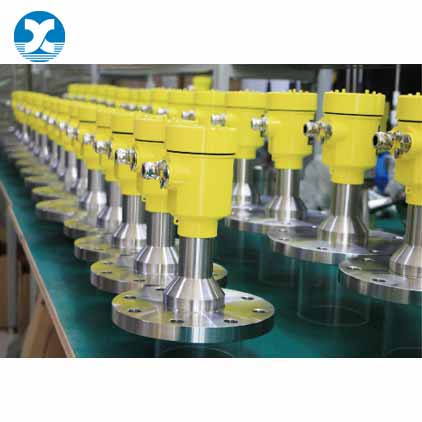

1. Introduction

When assisting equipment procurement and on-site instrument commissioning across chemical, energy, food and pharmaceutical facilities, a recurring technical inquiry consistently comes in: what real temperature and pressure limits can industrial radar level transmitters reliably sustain under continuous production conditions?

Many procurement and process engineers make specification decisions relying solely on brief datasheet parameters without accounting for cyclic temperature swings, occasional process surges or hidden medium corrosion. Improper specification matching frequently leads to premature seal degradation, drifting level readings or total instrument outage after short-term field service. Unplanned equipment replacement and production downtime stemming from wrong radar selection are common issues seen during routine troubleshooting work.

Compared with conventional float and capacitance level sensors susceptible to extreme ambient shifts, modern FMCW radar features optimized structural design to adapt to diverse harsh process environments. Even so, standard general-purpose radar and customized high-temperature, high-pressure variants feature distinct environmental tolerance thresholds. Transmitter housing material, antenna construction, flange specification and internal sealing components collectively define the upper and lower usable temperature and pressure boundaries.

This guide compiles field-verified tolerance data sorted by product grade, clarifies material-driven performance differences, summarizes typical specification pitfalls and delivers actionable specification guidance refined from abundant site application cases. Whether replacing aging legacy level instruments or specifying radar for newly constructed reactors and storage tanks, this content helps users select properly rated equipment and avoid costly specification mismatch.

2. Full Breakdown of Operating Temperature Tolerance for Radar Transmitters

Field application data splits industrial radar into three core temperature resistance grades, each engineered for defined operating environments.

2.1 Standard General-Purpose Radar (-40℃ ~ +80℃)

Economical 26GHz and conventional 80GHz non-contact radar fall into this specification range, designed for indoor ambient-temperature storage tanks, atmospheric intermediate chemical containers and grain or granular solid silos under stable ambient conditions.

Unit housings use standard die-cast aluminum paired with common silicone elastomer gaskets. The product tolerates brief transient temperature spikes within rated limits, yet sustained long-term operation above 70℃ noticeably accelerates gasket aging and internal circuit thermal overload, gradually triggering measurement instability. Without auxiliary cooling accessories, this standard model is not suitable for direct installation on steam-heated distillation vessels or high-temperature reactors regardless of upfront cost-saving intent.

2.2 High Temperature Resistant Custom Radar (-40℃ ~ +200℃, up to +450℃ with extended cooling neck)

Equipment installed on saturated steam vessels, thermal oil storage and high-temperature reaction reactors requires high-temperature optimized radar equipped with extended cooling necks. The elongated neck physically isolates heat-sensitive electronic assemblies from high-temperature tank vapor and restricts upward heat conduction.

Models fitted with standard finned cooling necks deliver stable continuous operation at 200℃ medium temperature. Units paired with air-cooled jackets and extended solid antennas reach a sustained upper limit of 450℃, widely deployed within petrochemical distillation columns, thermal oil processing tanks and high-temperature hydrolysis reactors. Installing low-cost standard radar onto process equipment operating above 100℃ to cut initial expenditure routinely results in irreversible component failure within half a year.

2.3 Cryogenic Low-Temperature Special Radar (-196℃ ~ +60℃)

LNG, liquid nitrogen and liquid oxygen cryogenic storage applications require purpose-built low-temperature radar. Conventional silicone sealing loses elasticity and fractures rapidly under ultra-low cryogenic conditions, so dedicated units adopt PTFE composite sealing alongside low-temperature resistant 316L stainless steel housings. Additional internal thermal insulation safeguards core electronics against extreme cold shutdown. This construction differs entirely from regular ambient storage radar; medium operating temperature must be confirmed explicitly during quotation specification confirmation.

3. Working Pressure Resistance Classification for Industrial Radar

Process flange design and sealed housing construction determine rated working pressure, grouped into atmospheric low-pressure, high-pressure sealed and vacuum three distinct categories.

3.1 Atmospheric & Low-Pressure Working Radar (PN6 / PN16, 0~1.6MPa)

Open-top bulk silos and conventional atmospheric storage tanks mostly adopt PN16 flange configured radar. These units withstand minor internal pressure fluctuations generated during material filling and tank ventilation, matching working conditions for food, beverage and general fine chemical raw material storage. Mounting this low-pressure rated equipment onto high-pressure sealed reactors inevitably causes medium seepage along flange joints after short-term operation.

3.2 High-Pressure Sealed Vessel Radar (PN40 up to PN250, 4MPa~25MPa)

High-pressure hydrogenation synthesis, compressed liquefied gas storage and pressurized fine chemical reactors require high-pressure certified radar with forged stainless steel flanges and thick-wall pressure-resistant housings. Internal sealing uses metal spiral wound gaskets instead of ordinary rubber to resist long-term medium compression deformation. Every unit undergoes factory hydraulic pressure testing prior to delivery for oilfield pressurized intermediate tanks and high-pressure synthesis vessels.

3.3 Vacuum Environment Adapted Radar (Full vacuum down to 0.001bar)

Pharmaceutical extraction tanks and vacuum distillation equipment operate under near full negative pressure. Conventional radar fitted with common organic rubber seals suffers from outgassing and seal shrinkage under vacuum, distorting echo signals and measurement data. Vacuum-specific radar uses all-metal hermetic sealing with no exposed organic elastomer inside tank cavities to eliminate these failure modes.

4. Key Component Materials Decide Final Temp & Pressure Endurance

Four core components dominate overall environmental tolerance; improper material selection stands as the primary source of premature field instrument failure.

Many procurement teams only compare radar operating frequency and unit price while overlooking component material specifications, leading to delivered equipment incapable of matching actual site temperature and pressure parameters.

5. Scenario-based Radar Selection by Typical Working Parameters

Data compiled from countless field instrumentation projects forms concise matching guidance available for routine procurement reference:

• Normal ambient storage tank (20~60℃, 0.1~0.3MPa): Standard 80GHz non-contact radar with PN16 carbon steel flange
• High temp steam reactor (150~220℃, 1.0~2.5MPa): High temp radar with cooling neck, 316L forged flange
• LNG cryogenic tank (-162℃, 0.8~1.2MPa): Cryogenic customized 316L radar with full low-temp composite sealing
• Vacuum pharmaceutical distillation tank (50~90℃, near vacuum): Hermetic sealed vacuum type guided wave radar

Thanks to integrated probe and monolithic flange construction, guided wave radar consistently delivers superior pressure tolerance against equivalent-spec non-contact radar, making it the preferred option for compact high-pressure small-scale reactors.

6. Common Buyer Mistakes on Temperature & Pressure Specification Selection

Long-term order review and field fault sorting identify four recurring specification selection errors across global procurement teams: First, equate short-duration laboratory datasheet test ratings with year-round continuous operating limits. Manufacturer performance data is collected under stable ideal lab environments; a 15%~20% safety margin above peak actual process parameters is mandatory to accommodate unplanned startup or feeding pressure/temperature spikes. Second, select cost-saving standard radar for high-temperature steam service. Hidden progressive seal degradation develops unnoticed, resulting in instrument breakdown within 6~12 months and expensive emergency replacement costs. Third, fixate solely on temperature and pressure figures while ignoring medium corrosivity. Even high-spec pressure-rated flanges undergo rapid corrosion when exposed to persistent acidic or alkaline process fluids. Fourth, disregard seasonal extreme ambient conditions for outdoor-mounted equipment. Units installed in cold climate open-air locations require low-temperature optimized housings rather than standard indoor variants.

7. Practical Tips to Improve Radar Environmental Adaptability Without Extra High Cost

When project budget restricts fully customized high-spec radar procurement, affordable auxiliary fittings effectively expand usable operating ranges:

Fit air purge cooling assemblies on antennas operating above 120℃ to reduce continuous surface working temperature

Install external thermal insulation casings for outdoor radar exposed to sustained ambient temperatures below -30℃

Replace factory standard elastomer gaskets with PTFE composite gaskets for mildly corrosive medium vessels to extend sealing service life

These auxiliary parts carry minimal additional expense and resolve most marginal working condition mismatches effectively.

8. Frequently Asked Questions (FAQ)

Q1: Can standard general radar work continuously at 80℃ medium temperature? Short intermittent operation is acceptable, yet uninterrupted long-term running at the rated upper limit of 80℃ accelerates silicone gasket aging rapidly. Switch to high-temperature optimized radar if process medium holds steady above 70℃ year-round.

Q2: Is guided wave radar more pressure resistant than non-contact radar under identical specifications? In most conventional applications yes. Guided wave's integrated probe-flange construction delivers superior pressure tightness, commonly rated for PN40 and above high-pressure vessels, whereas most off-the-shelf non-contact radar defaults to PN16 flange specification.

Q3: Does vacuum condition require specially customized radar instead of ordinary products? Yes. Conventional rubber gaskets release trace volatile components and shrink under sustained vacuum, destabilizing level readings. All-metal hermetically sealed vacuum-specified radar is required for such operating environments.

Q4: How much safety margin should be reserved when selecting temperature and pressure grade? A 15%~20% spare rating above recorded peak process values is recommended to offset transient temperature and pressure surges during equipment startup and raw material feeding cycles.

9. Conclusion

Industrial radar level transmitters cover wide graded temperature and pressure working ranges, spanning from -196℃ ultra-low cryogenic LNG storage up to 450℃ high-temperature distillation equipment, alongside working conditions from full vacuum to dozens of MPa high-pressure synthesis vessels. Economical standard radar only suits mild normal-temperature, near-atmospheric storage environments; high-temperature, high-pressure and cryogenic operating sites demand targeted upgrades to equipment structure and component materials.

Procurement decisions cannot rely exclusively on condensed datasheet nominal ratings. Final selection needs comprehensive evaluation of peak medium temperature, maximum operating pressure, medium corrosive properties and seasonal outdoor ambient extremes, paired with reasonable safety margin to avoid specification mismatch. Proper model matching extends stable radar service life to 5~8 years and cuts recurring overhaul and replacement expenditure substantially.

If on-site vessel temperature and pressure parameters remain unconfirmed or customized radar specification recommendations are needed based on specific process conditions, reach out to the technical team. Tailored radar solutions are provided per detailed site working data.
